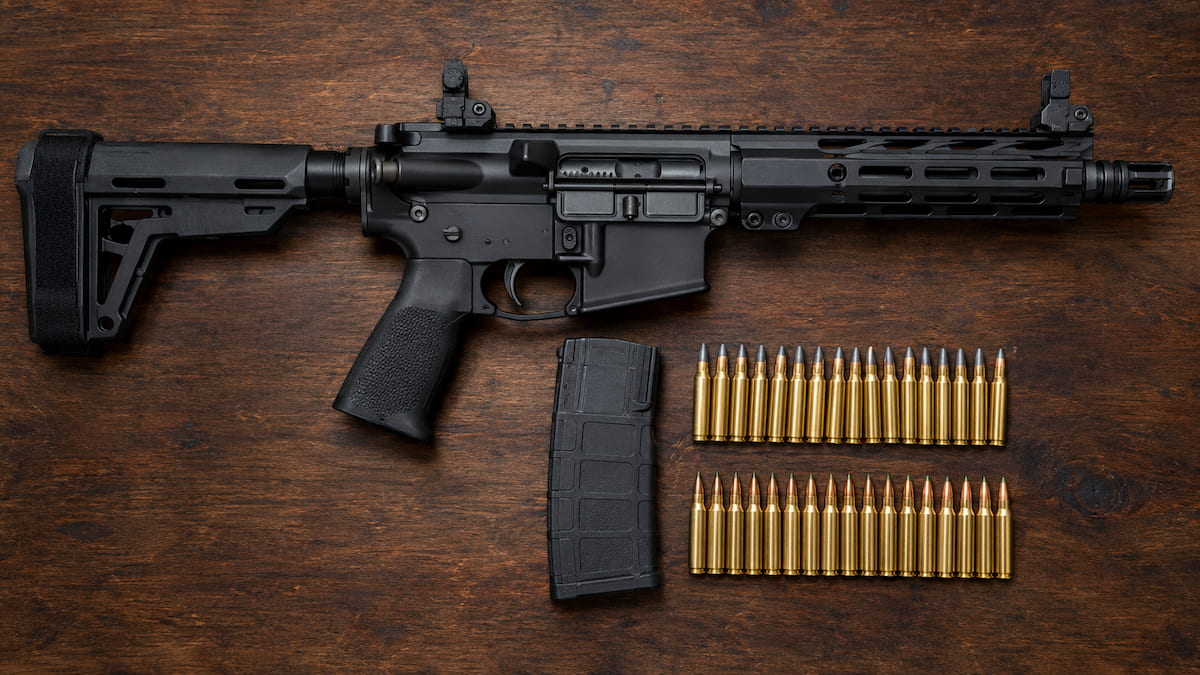

The 10.5-inch AR-15 (pistol or SBR) is ideal for tight spaces, but cutting barrel length from 16 to 10.5 inches sacrifices 400–500 FPS in muzzle velocity.
This velocity loss harms terminal performance. Standard M193 (55gr) and M855 (62gr) ball ammo rely on high speed to fragment and quickly lose that capability out of short barrels.
Consequently, selecting the best ammo for 10.5 barrels requires projectiles designed specifically to expand or fragment at lower velocities.
The Top Ammo Picks for 10.5″ Barrels
To choose the right round, you must first understand the physics behind short-barrel velocity loss and projectile behavior.
- The Speed Gap: Full-length 16-inch carbines launch standard 5.56 loads at roughly 3,100 FPS. A 10.5-inch barrel drops those speeds down to 2,500–2,650 FPS, drastically reducing initial kinetic energy.
- The Fragmentation Threshold: Standard 55gr M193 needs 2,500–2,700 FPS to fragment in soft tissue. From a 10.5-inch barrel, it falls below this threshold within 15–25 yards, severely limiting terminal expansion.
- Twist Rate Advantage: Most modern 10.5-inch barrels feature a fast 1:7 or 1:8 twist rate. This stabilizes heavy 62gr to 77gr projectiles, enabling effective use of specialized heavy loads at lower velocities.
Because no single cartridge excels at every task, the top options for 10.5-inch barrels are best evaluated by operational category:
Best Heavy Open-Tip Match (OTM) / Precision & Duty
- Black Hills 77gr Mk262 Mod 1 (or Tipped SMK): Originally developed for military special operations SBRs, Mk262 Mod 1 utilizes the heavy Sierra MatchKing Open Tip Match projectile. It features a much lower fragmentation threshold (~2,100 FPS) than M193 ball ammo, extending your effective fragmenting range out to 125+ yards from a 10.5-inch barrel.
- IMI 77gr RazorCore BTHP / BC Ammo Match 5.56 NATO: These heavy 77-grain match alternatives provide sub-MOA accuracy, impressive lot-to-lot velocity stability, and reliable upset upon impact without requiring 3,000+ FPS muzzle velocities to perform.
Best Dedicated Home Defense & SBR Loads
- Hornady BLACK 75gr InterLock HD SBR: Built from the ground up for barrels 10.5 inches and shorter, this round addresses the intense muzzle flash and blast typical of short gas systems. Hornady uses fast-burning propellants that burn completely inside short barrels while propelling a 75gr bullet engineered to expand down to ~1,800 FPS.
- Speer Gold Dot 62gr / 75gr GDSP: Considered a benchmark for law enforcement duty use, Speer Gold Dot features an electro-chemically bonded core. The copper jacket and lead core are fused together to prevent separation when passing through interior barriers like drywall or heavy clothing. It’s important to know how controlled expansion works in different types of hollow point bullets to see why bonded designs excel at lower velocities.
Best Barrier-Blind & Monolithic Loads
- Federal Fusion MSR 62gr / Tactical Bonded: Designed specifically for modern sporting rifles, Federal Fusion combines a molecularly bonded soft point with high weight retention. It transfers kinetic energy rapidly while punching cleanly through barriers.
- Barnes 62gr TSX VOR-TX: An all-copper monolithic projectile containing no lead core to separate. Upon impact at SBR velocities, the hollow tip opens into four sharp copper petals, yielding 100% weight retention and reliable penetration.
Best Range & Training Ammunition
- PMC X-TAC 55gr FMJ / Winchester M193: For high-volume drills and sight-in practice, standard 55gr brass-cased M193 is economical and reliable. While not ideal for defensive duty out of a 10.5-inch barrel, it offers clean cycling and consistent lock-back for target practice.
10.5″ Barrel Performance Comparison Table
| Ammunition Load | Bullet Weight & Type | Muzzle Velocity (10.5″ Barrel) | Minimum Expansion / Frag Threshold | Primary Ideal Use Case |
| Hornady BLACK SBR | 75gr InterLock HD | ~2,320 FPS | ~1,800 FPS | Home Defense / CQB |
| Speer Gold Dot | 62gr Bonded SP | ~2,510 FPS | ~1,900 FPS | Duty / Barrier Defense |
| BC Ammo / Match 5.56 | 77gr OTM / SMK | ~2,420 FPS | ~2,100 FPS | Precision / Heavy Match SBR |
| Barnes VOR-TX | 62gr TSX (All-Copper) | ~2,460 FPS | ~1,800 FPS | Barrier-Blind / Hunting |
| PMC X-TAC M193 | 55gr FMJ | ~2,680 FPS | ~2,500 FPS | Range Training / Plinking |
Key Factors for 10.5″ Setups: Gas, Flash, and Dwell Time
When optimizing ammunition for a 10.5-inch AR platform, internal mechanics are just as vital as terminal ballistics:
- Dwell Time Realities: Dwell time refers to the brief window of time the bullet travels past the gas port before exiting the muzzle, maintaining pressure to cycle the bolt carrier group. A 10.5-inch barrel running a carbine-length gas system has a relatively short dwell time. Clean-burning, uniformly loaded ammunition with consistent pressure curves is essential to avoid short-stroking or failing to lock back on an empty magazine.
- Flash & Noise Management: Short barrels vent unburnt powder outside the muzzle, generating a harsh blast and a bright muzzle flash. Selecting defensive loads built with flash-suppression additives (like Hornady BLACK SBR or Speer Gold Dot)—or running a quality silencer—mitigates blinding flash during low-light indoor operations.
FAQs
Can you shoot 55gr M193 out of a 10.5″ barrel?
Yes, for range practice and high-volume training drills. However, because a 10.5-inch barrel drops M193 below its ~2,500 FPS fragmentation threshold almost immediately past the muzzle, it is not recommended as a primary home-defense round.
What is the best bullet weight for a 10.5″ barrel with a 1:7 twist?
62-grain to 77-grain projectiles. A fast 1:7 twist rate stabilizes heavy Open-Tip Match (OTM) and long bonded soft-point bullets, allowing them to deliver superior terminal energy and tracking out of short barrels.
Is a 10.5″ barrel better than a 11.5″ barrel for 5.56?
No, but it depends on your priority. A 10.5-inch barrel offers maximum compactness in tight quarters. However, an 11.5-inch barrel provides roughly 40% more dwell time and yields an extra ~100 FPS of muzzle velocity, which slightly broadens your ammunition options. Both barrel lengths perform best when loaded with heavy or bonded projectiles.
Conclusions
To get the absolute most out of a 10.5-inch barrel, match your ammunition selection to the physical limits of a short gas system. Leave budget 55gr FMJ ball ammo for high-volume practice, and step up to 77gr OTMs or bonded soft points (62gr–75gr) when defensive terminal performance matters.
At BC Ammo, we craft precision-loaded 5.56 NATO rounds right here in Texas. Engineered with strict small-batch quality control, tight charge tolerances, and real-time factory pressure testing, our match ammo gives short-barrel shooters the velocity consistency and cycling reliability required on the range.
Maximize your short-barrel setup. Shop BC Ammo’s Match 5.56×45 NATO today to unlock true Texas-engineered precision and reliable velocity out of your 10.5″ barrel.
